Fully Automated Solution for Liquid Product - Pillow Bag Type

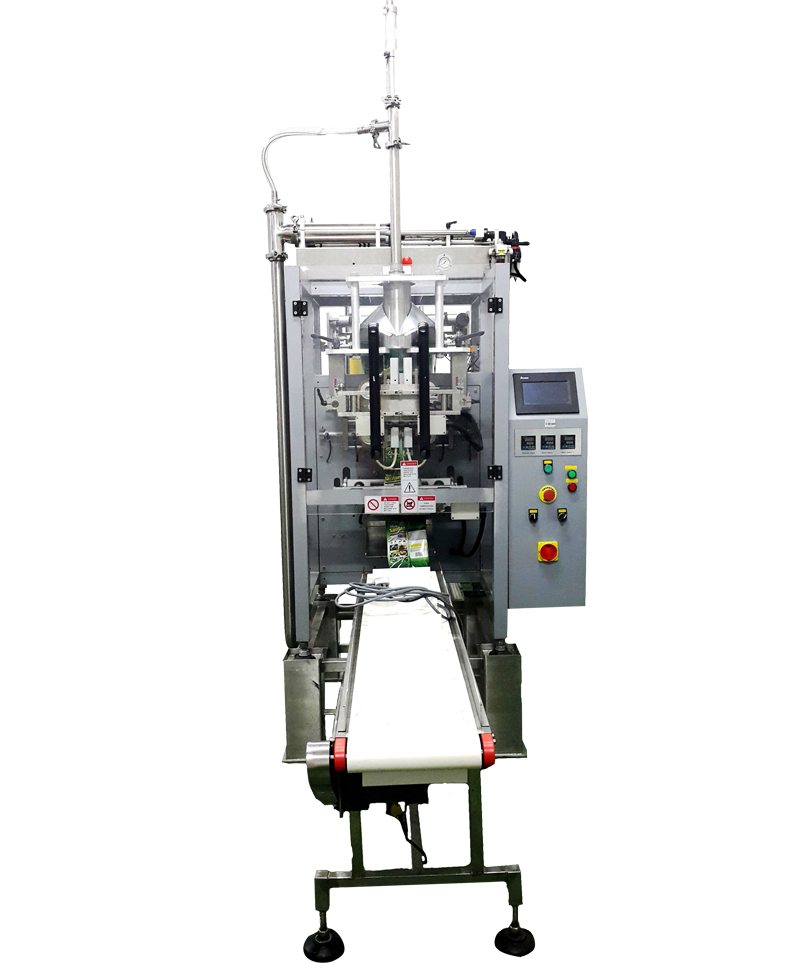

(A)       Big Bag Pillow Type (Stainless Steel)

Model: EPV-4230-P

 Specifications:

• Packing material: OPP/CPP, PET
• Bag-making size (LxW): 50~300mmx 80~200mm
• Packing Speed: 10-30 bags/min
• Film Max. Diameter: Ø 400mm
• Power Supply: 5.5kW 380V 50Hz
• Air Supply: 0.60MPa 0.36m³/min
• Air Consumption: 0.3m³/min
• Air-cylinder used “Air-tech” or equivalent from Taiwan.
• Electrical component mainly Delta of Taiwan.
• Net weight of Machine: 1200kg
• Dimension (LxWxH): 3600x1470x3430mm
• All parts contacted with product are Stainless Steel Constructed.

(B)       Stainless Steel Piston Pump

Model: Ddl-100

Specifications:

• Capacity: Max. 1000mL
• Fully pneumatic operated, easy for cleaning

(C)       Discharge Conveyor
